Place of Origin: | Guangdong, China |
Brand Name: | Handy |
Certification: | CE |
Model Number: | HN-5C03 |
Minimum Order Quantity: | Small order acceptable |
---|---|
Price: | Get the latest price |
Packaging Details: | Color box, carton |
Delivery Time: | immediately delivery |
Payment Terms: | Payment by T/T |
Supply Ability: | 10000pcs/month |
Highlight: | sink water filter faucet,water filtration faucet |
---|

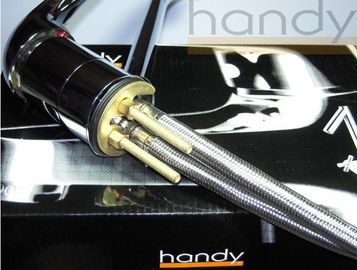

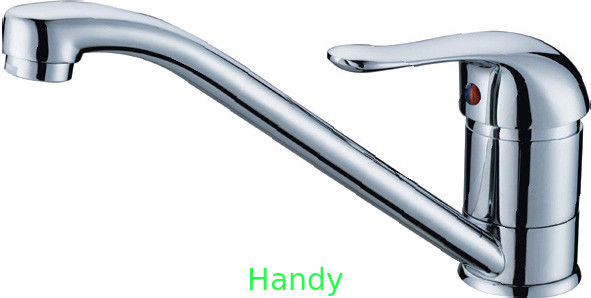

360 degree rotated Kitchen Sink Faucet with one handle built-in Ceramic cartridge HN-5C03
Quick Detail:
Description:
* Water pipe can be rotated 360 °.
* Single hole installation, unique shape of the spout, flat quick-open handle.
* automatic mix cartridge .
* H59-1 brass main body made by gravity casting.
* Bubbler in outlet makes the stream more smoothly.
* Ceramic cartridge, Quality guarantee 600000 cycles no leakage.
Applications:
Kitchen sink faucets, home basin faucets, household faucets, industrial faucets etc.
Specifications:
Material: |
H59-1 Brass |
Cartridge: |
Ceramic cartridge, Hain-Yo brand |
Surface treatment: |
Chrome plalted |
The thickness of plating: |
8~12um |
Salt Spray Testing: |
General plating: 24hours/Acid;120hours/neutral Acid Plating: 48hours/Acid;240hours/neutral |
Water Pressure Testing: |
0.05-0.9MPA |
Cartridge Life time: |
500,000 cycles |
Quality Guarantee: |
5 years Quality Guarantee |
Drawing: |
Please contact us to get |
Hardware needed for mounting: |
Along with the faucet |
A.I.: |
Along with box packing |
Competitive Advantage:
Service conditions:
1)The working pressure of the products is 0.05MPa-0.9MPa
2)The temperature is no more than 85° when supply hot water.
3)Don't use vapor when supply hot water.
4)The working temperature is more than 0°
5)The suitable dimension of the sink hole is ø33mm-ø38mm
No |
Part Name |
QTY |
Material |
1 |
Aerator |
1 |
Brass chrome plated |
2 |
Spout |
1 |
Brass chrome plated |
3 |
Handle |
1 |
Zinc alloy chrome plated |
4 |
Valve body |
1 |
Brass chrome plated |
5 |
Gasket |
2 |
Rubber & Brass |
6 |
Fixed nut |
2 |
Brass |
7 |
Fixed screw |
2 |
Brass |
8 |
Stainless steel hose |
2 |
Stainless steel |
